Monthly DX Beacon Chart at W6SI

Month's Event

Spt 26-27 CQWW RTTT Contest

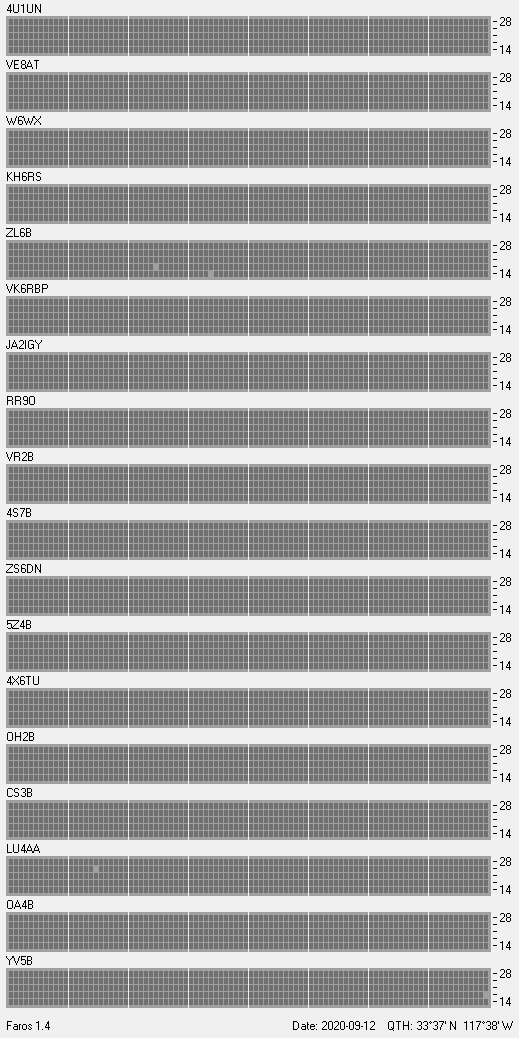

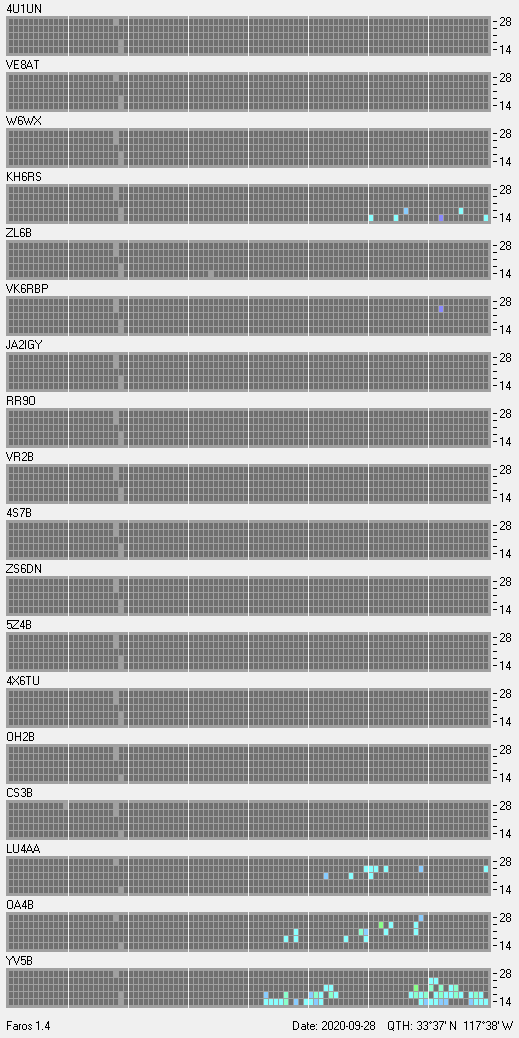

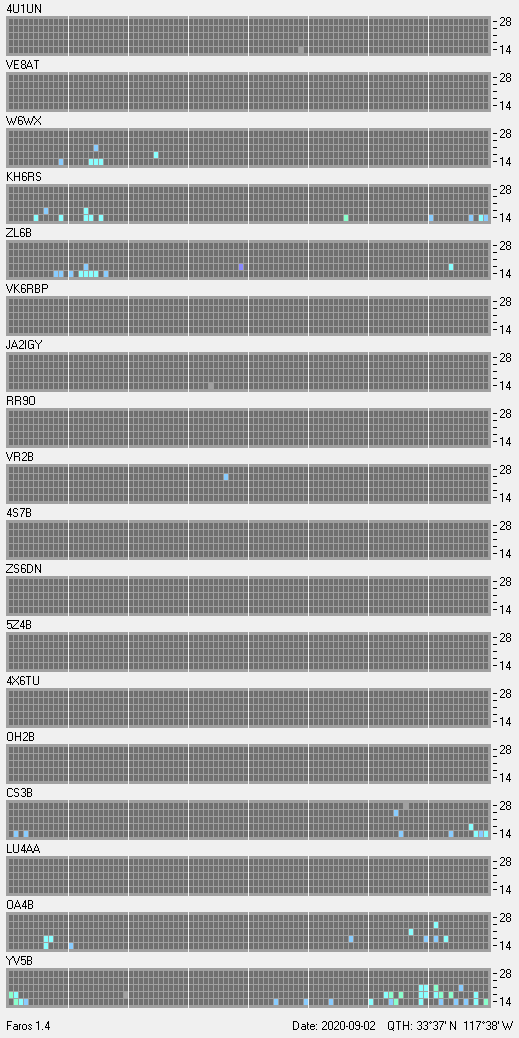

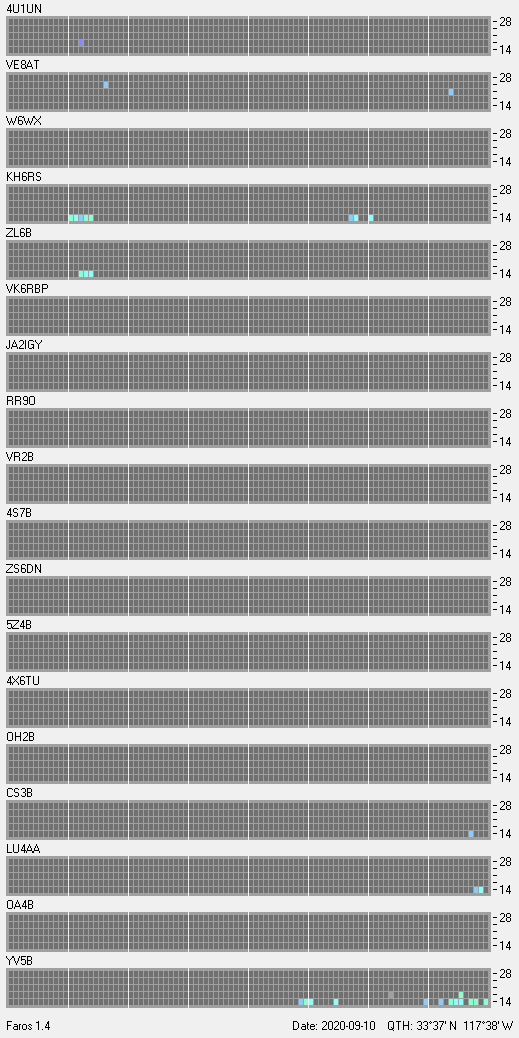

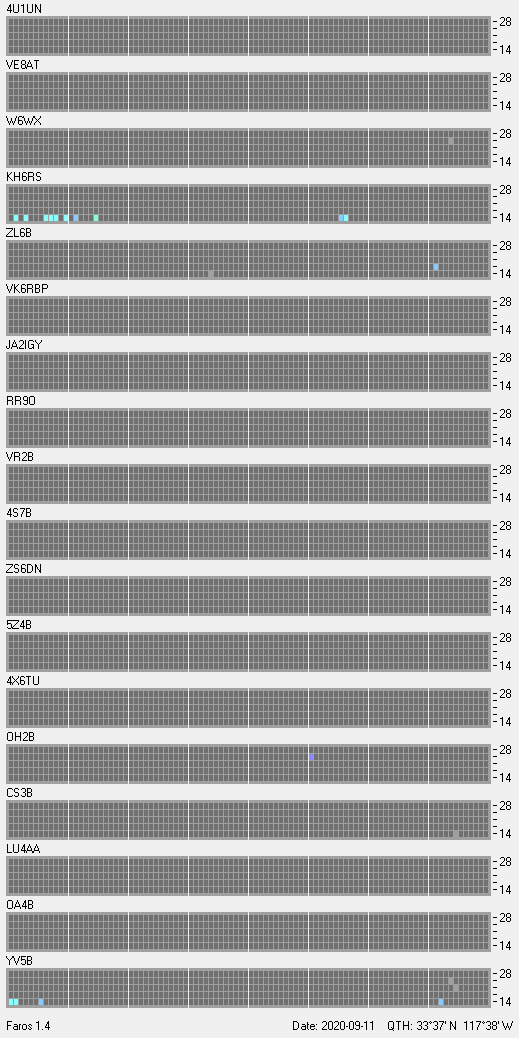

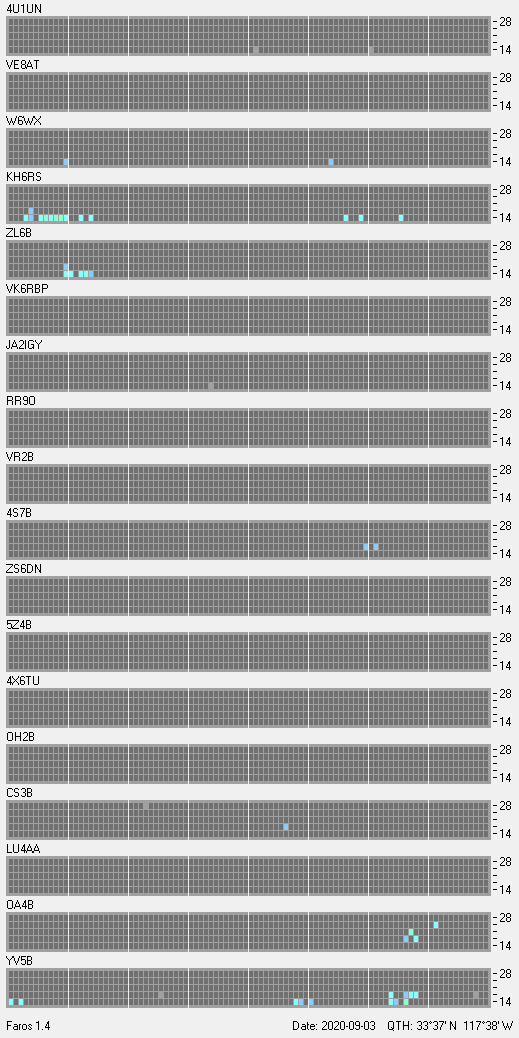

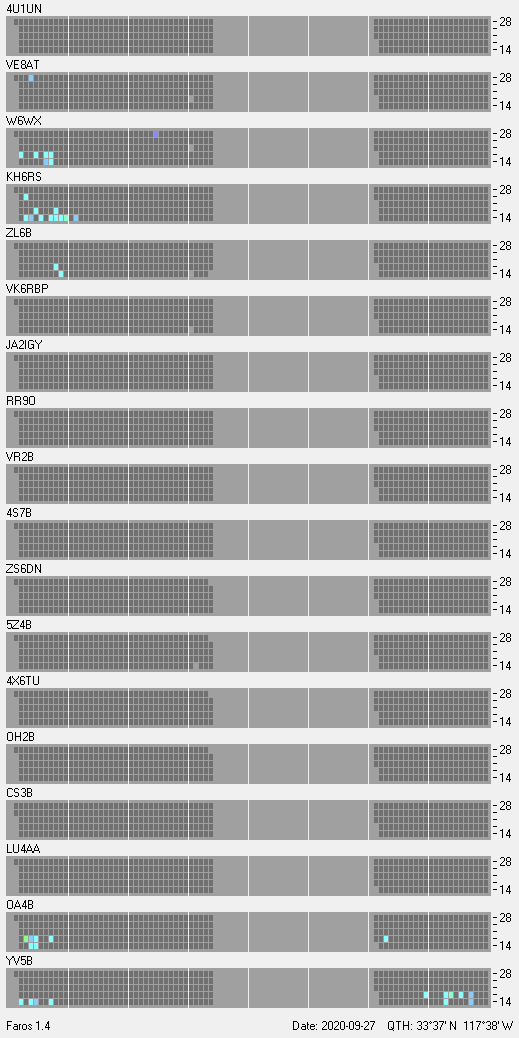

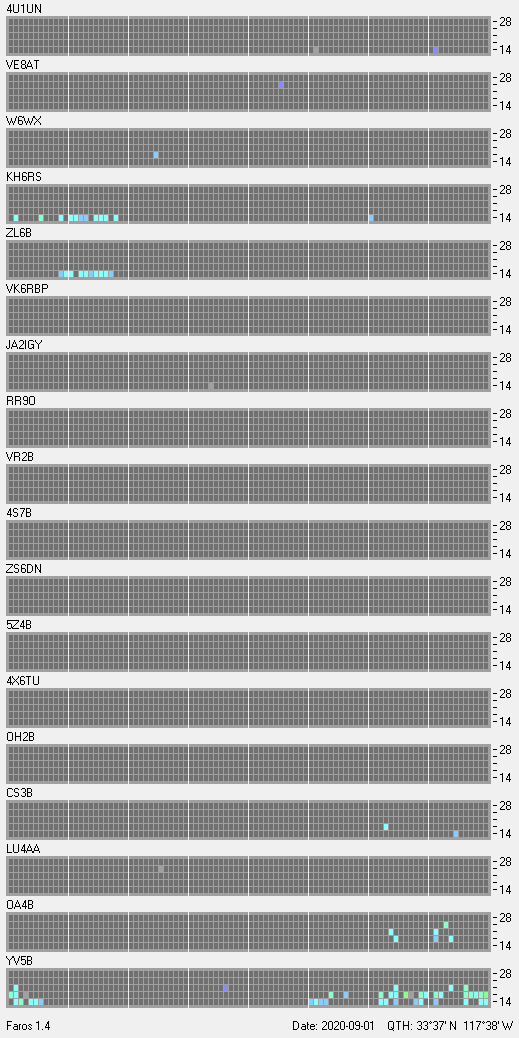

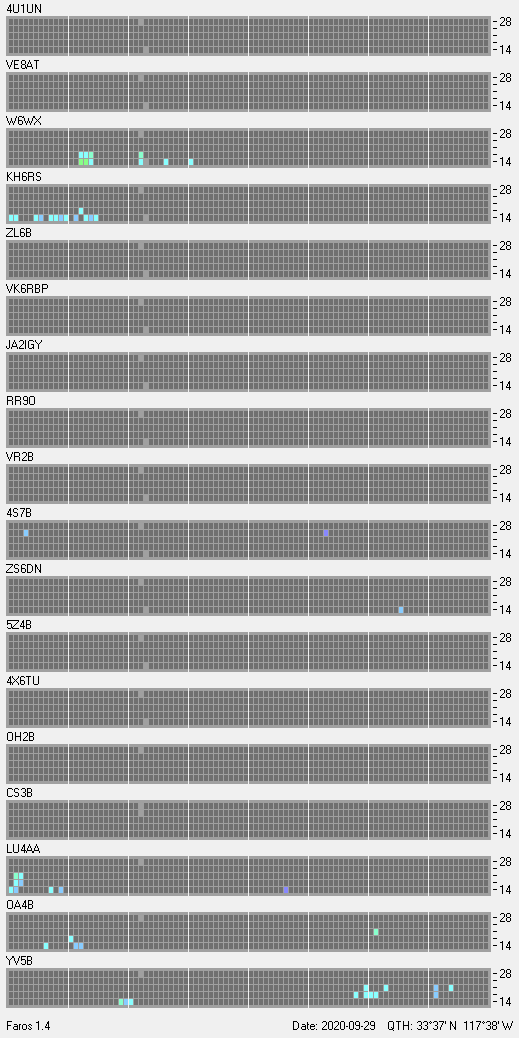

This is a record of NCDXF Beacon received at W6SI station using FAROS 1.4 monitor software. There are 18 beacons throughout the world, it records each ham band between 20m to 10m bands, including WARC bands. Each row on the given beacon block represents the band, 20, 17, 15, 12 and 10 meters, from the bottom to the top. The chart shows the relative signal strength (S/N ratio) of the received beacon.
The horizontal time axis is in UTC, so in PST each chart covers 4PM previous day to 5PM (DST) of the indicated day. The color of the chart indicates the S/N ratio as decoded by the software, as shown in the right column. The dark gray is no reception; the light gray indicates no input, where FAROS did not receive any signals from the receiver, due to W6SI QRV (I do operate the station now and then), strong interferences, PC malfunctions, or some other causes.
Each square represents 10 second time the beacon is captured, so each column represents 10sec x 5 bands x 18 bcn = 15 minutes to cover all beacons for all bands.



September, 2020

  Home Page Previous Year Previous Month Beacon Chart Top Next Month Next Year
Sunday Monday Tuesday Wednesday Thursday Friday Saturday




1

2

3

4

5


6


7

8

9

10

11

12

13

14

15

16

17

18


19


20

21

22

23

24

25

26

27
28

29
30



W6SI Beacon Monitoring Station Description:
ANT: MV Special vertical Mark II
RX: Elecraft KX3
Quadrature Audio output fed to HD Audio (24-bit, 96Ksmpl/sec)
PC: Lenovo ThinkCentre M1 i70-3770 Proc@3.4GHz

Location: Mission Viejo, CA U.S.A.
(33° 37' N, 117° 38' W -- DM13)
OS: Windows 10(64-bit)
App: FAROS 1.4


  Home Page Previous Year Previous Month Beacon Chart Top Next Month Next Year


NOTE:
As of September 1, 2020, 4U1UN (New York), VE8AT (Nunavut), 4S7B / 5Z4B (Kenya), Sri Lanka LU4AA (Argentina) are down due to hardware failure.
(Src: NCDXf.org/beacon)



Above is an archived data of the Beacon monitor, untouched by me. If you have any questions, feedback and/or suggestions, please send me an e-mail. I might reply on this page (sorry, no guarantee)
